RF · Acrylic Antenna System

HAX3014 RF Acrylic Antenna System 8.2Mhz

Model: HAX3014

The HAX3014 is an 8.2MHz RF acrylic antenna system with remote control. Available in single or double configuration, it features an acrylic frame with custom logo support, remote debugging, and firmware updates.

Technology
RF (8.2MHz Radio Frequency)
Detection Range
1.0 ~ 1.8m (soft label)
Configuration
Single or Double (TX/RX)
Frame Material
Premium Acrylic
Custom Logo
Yes
Remote Tuning
Yes (WiFi)
Firmware Upgrade
Remote, over WiFi
Power Supply
100–240V AC, 50/60Hz

Key Features

  • 8.2MHz RF acrylic antenna system
  • Single or double configuration optional
  • Custom logo supported on acrylic frame
  • Remote debugging and firmware updates
  • Cost-effective RF solution
  • Compatible with all 8.2MHz RF labels and tags
Request a Quote Download Datasheet
Worldwide shipping 2-year warranty 7×24H support CE / FCC certified
Product Details

Technology & Applications

RF Technology

The HAX3014 uses 8.2MHz radio frequency technology. The transmitter antenna creates an electromagnetic field, and when an RF soft label or hard tag enters the detection zone, it disrupts the field and triggers the alarm. RF systems are cost-effective and widely used in retail worldwide.

Ideal Applications

  • Retail chain stores
  • Supermarkets
  • Bookstores
  • Pharmacies
  • Convenience stores
  • Apparel retail
Related Products

You may also like

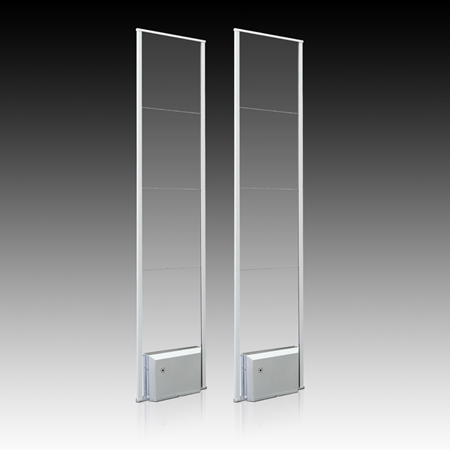

RFHAX1700 RF Ultra-thin Acrylic with RGB
